Foam concrete production:technology, equipment, and process
"Foam concrete, also known as lightweight cellular concrete (LCC) and low density cellular concrete (LDCC), and by other names, is defined as a cement-based slurry, with a minimum of 20% (per volume) foam entrained into the plastic mortar. "
Foam concrete production is a straightforward and cost-effective process for creating lightweight building materials. This guide explains the key technologies—from raw material preparation to mixing methods like barotechnology and pre-foaming.
Foam concrete production is an efficient technology for creating cellular lightweight concrete (CLC) directly on construction sites or in small-scale manufacturing units. For builders, contractors, and small business owners, mastering the production of foam concrete provides a versatile solution for insulation, block making, and monolithic construction.
In this guide, we explore the fundamental steps, required equipment, and key technologies used to produce high-quality foam concrete that meets modern construction standards.
What is foam concrete production?
The production of foam concrete involves the uniform distribution of air bubbles throughout a cement-based slurry. Unlike traditional concrete, foam concrete does not rely on coarse aggregates (like gravel). Instead, it uses stable foam to create a cellular structure, which provides excellent thermal and acoustic insulation while significantly reducing the material's weight.
Essential raw materials for production
To produce reliable foam concrete, you need a precise combination of the following components:
- Portland Cement: The binder that provides structural strength. Higher grades of cement (like CEM I 42.5) are typically preferred for faster setting.
- Sand: Fine, clean sand (river or silica sand) is used to provide volume and durability. For very low-density insulation (below D400), sand is often excluded.
- Water: Used for both the cement slurry and the foaming agent solution. The water-to-cement ratio is critical for maintaining the stability of the foam.
- Foaming Agent: A specialized concentrate (either protein-based or synthetic) that creates the stable air bubbles required for the cellular structure.
- Additives: Optional components like plasticizers, accelerators, or polypropylene fibers can be added to enhance specific properties like workability or crack resistance.
Two primary production technologies
There are two main methods used by small and medium-scale producers to incorporate air into the concrete mixture.
1. The Pre-Foaming method (classic Technology)
In this method, a foam generator is used to create foam separately by mixing water, foaming agent, and compressed air. This stable foam is then added to a mixer containing the cement-sand mortar. This technology allows for precise control over the foam's quality and is ideal for block production and workshop environments.
2. Barotechnology (easy mixing method)

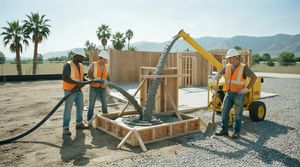

Barotechnology involves mixing all ingredients—cement, sand, water, and foaming agent—inside a sealed, pressurized mixer. Air is forced into the vessel under pressure while the mixture is agitated. This method is highly efficient for monolithic pouring on construction sites, as the pressure in the vessel helps pump the finished concrete directly to the target area.
The Step-by-Step production process
A typical production cycle for foam concrete follows these logical steps:
- Material Preparation: Weighing or measuring the cement, sand, and water according to the desired density (e.g., D600 for structural-insulating blocks).
- Mixing the Slurry with Foaming Agent: Loading cement, sand, water, and the foaming agent concentrate directly into the mixer. This is the core of the barotechnology method — no separate foam generator is used.
- Foam Formation Under Pressure: The foaming process happens dynamically during mixing. Air is entrained under pressure, creating stable foam cells directly within the mortar without any pre‑generated foam.
- Homogenization: Mixing the components for a specific duration (usually 2-5 minutes) to ensure the air cells are evenly distributed without collapsing.
- Discharge and Pouring: Transporting the mixture via a concrete pump into block molds or directly onto the installation area (floors, roofs, or wall forms).
- Curing: Allowing the foam concrete to set. Proper moisture and temperature management during the first 24-48 hours are essential for preventing cracks and ensuring strength.
Required equipment for small businesses
For small-scale production, the equipment setup is designed for simplicity, durability, and ease of maintenance. The core components include:
- Foam Concrete Mixer: A specialized mixer with blades designed to blend foam without destroying the air cells.
- Foam Generator: For producers using the pre-foaming method to create high-quality stable foam.
- Pumping System: Integrated or external pumps for transporting the lightweight concrete.
- Block Molds: Precision-engineered molds for producing consistent foam concrete blocks.
Practical Advice: The quality of your foam concrete depends heavily on the stability of the foam. Always choose a high-quality foaming agent and ensure your air compressor provides a consistent pressure.
Conclusion: Why start foam concrete production?
The production of foam concrete offers a low-cost entry point into the building materials market. With relatively simple machinery and locally available raw materials, builders can produce high-value insulating materials that reduce construction time and improve energy efficiency. Whether for internal walls, floor screeds, or thermal roof insulation, foam concrete remains one of the most practical technologies for modern sustainable construction.
